ANNOUNCEMENT: NEW MIMO 4G/ 5G ANTENNA FOR VEHICULAR LTE ROUTER
09. December 2020 | Planegg

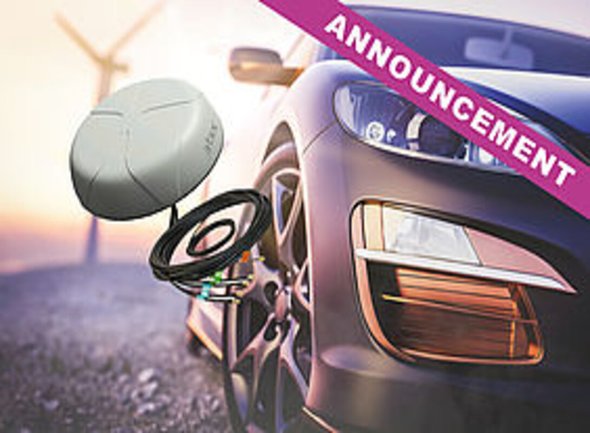

The ATXX-DY-2011145 MIMO 5G antenna range has been designed to support the next generation of vehicular LTE routers with 4x4 MIMO. The 4G/ 5G antenna enclosure can provide up to nine antenna elements. Customization of cabling and antennas model is subject for further discussion.
All versions of our 5G antenna are carrying 4 ultra-wideband elements for 698-3800MHz which supports MIMO function for 4G/5G cellular bands. Version with GNSS antenna which has a 26dB gain LNA with high performance filtering for reliable operation is also available upon request. Variants are also available which include 2, 3 or 4 dual band 2.4/4.9-6GHz Wi-Fi elements for MIMO function.
Although the LTE elements are designed for 4x4 MIMO operation, you may utilize these as 2 pairs of 2x2 MIMO for a router that offers 2 radio modem in a failover configuration (i.e. only one SIM active). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable.
Order the 5G Antenna ATXX-DY-2011145 directly in our WEBSHOP.
