802.11AC/ABGN DUAL-BAND WI-FI+BLUETOOTH M.2 LGA TYPE 1216 MODULE
20. November 2019 | Planegg

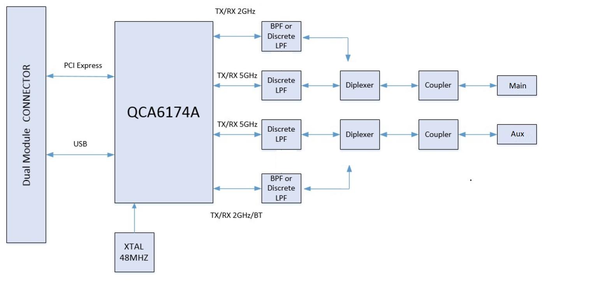

SparkLAN WNSQ-261ACN(BT) is an 802.11ac/abgn Dual-Band Wi-Fi+Bluetooth M.2 LGA type 1216 module based on Qualcomm Atheros QCA6174A-5 chipset. It is Dual-Band AC on 2.4GHz+5GHz and incorporates the latest Bluetooth 5.0. The download speed are 300Mbps on N networks and 867Mbps on AC network.(WiFi 5)
Solutions
Features:
- Chipset: Qualcomm QCA6174A-5
- Form Factor: M.2 (LGA 1216)
- Wireless Standard: 802.11ac/abgn + BT
- Frequency: 2.4/5GHz, Dualband
- Antenna: 2x2 MIMO (2Tx2R)
- Interface: PCIe: WLAN; USB: Bluetooth
- Dimension: 12mm x 12mm x 1.5mm
- Support: Windows 7/8.1/10; Linux (Open Source), Recommend Kernel v4.0+
Adopting the latest WiFi 5 solution. WNSQ-261ACN(BT) is ideal for next-generation high throughput enterprise networking solution. Incorporated with advanced security encryption, such as WEP, WPA, WPA2, WPS, and 802.1x, it helps prevent user’s devices from malicious attacks.
Applications:
- Medical devices
- Security systems
- Robots
- Video streaming
- PoS
- Digital signs
- Gaming machine
- Tablet PC’s
- Handheld devices
- Thin client devices
